ITEM                           SUB ITEM                                                                        DESCRIPTION

CPU

32bit core with 192MHz, 1MByte RAM/ 1MByte Flash

MS

ISO 7810 ID-1

ISO 7811 TRACK 2 or TRACK 2,3 Read

Dual Head Two-way

IC Contact

ISO 7816 / EMV Level 1, EMV Level 2 (Payment On-line)

Dual IC Contact Two-way

Slot inlet Shutter Mounting

Contactless smart card

External only

ISO 14443 A/B, MiFare, DesFire, FeliCA / ISO 18092 (NFC)

Barcode

Image Sensor

640*480 CMOS

Symbologies

2D : PDF417, QR Code, Micro QR, Data Matrix(ECC200), Chinese Sensible (HanXin) Code, Mico QR

1D : EAN13, EAN8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11,MSI Plessey,RSS-14, RSS-limited, RSS, Expanded

Scan Angle

Roll: 360°, Pitch: ±60°, Skew: ±60°

Horizontal View Angle 48°

Min. Symbol Contrast : 20%

Resolution

1D ≥ 5mil, 2D ≥ 10mil

Typical Depth of Field

EAN-13 (13mil): 40mm-200mm Code 39 (15mil): 45mm-250mm

PDF417 (6.7mil)

50mm-125mm Data Matrix (10mil): 45mm-120mm

Life

MS : 500,000 pass

IC : 1,000,000 contact

Mobile pay

Samsung Pay, LG Pay

SAM

4 Socket ( Sim type )

Interface

Default USB(Uart) / Option RS-232C, USB HID

Power

DC 12V / 2.5A

Operating Temperature

0 ~ 50 ℃, 5~90% RH

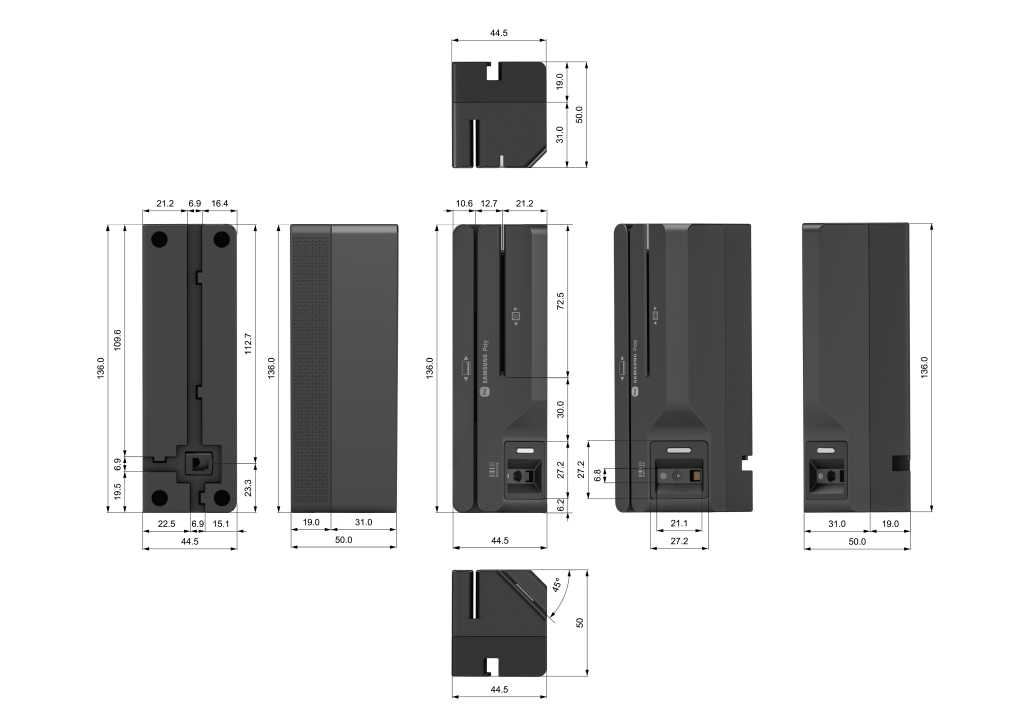

Dimension

44.5mm(W) x 50mm(H) x 136mm(L)

Welght

200g less than
